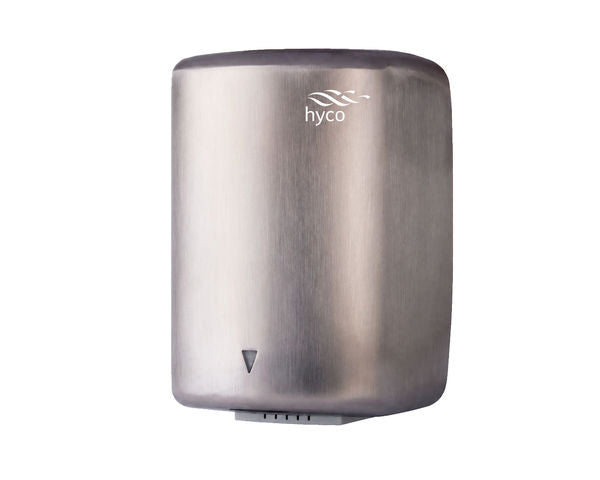

Hyco - Ellipse 1.55kW Automatic Energy Efficient Stainless Steel

Ellipse 1.55kW Automatic Energy Efficient

Usage:
Suitable for many public washroom applications including restaurants, shops and shopping centres, office buildings, pubs, motorway services, factories and supermarkets. The Ellipse is one of most energy efficient hand dryers.

• Modern stylish design
• High speed giving fast drying times
• Saves energy relative to traditional hand dryers from reduced drying times
• Hygienic automatic operation reduces the risk of spreading germs
• 1.55kW power rating
• Option to reduce power setting to 0.6 kW on installation to increase energy efficiency
• Dry Zone LED indicator gives visible indication to ensure hands are placed in the warm air stream
• Dual colour LED sensor indicator (green: on, red: off)
• Durable metal vandal resistant case

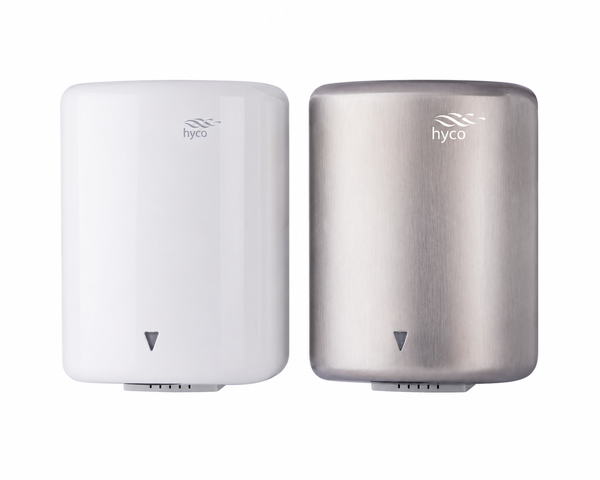

• Available in white or stainless steel finish

Outer Casing
ELLW - white enamel steel
ELLBSS - brushed stainless steel

Heating Element
800 W - Option to switch element off

Motor
600 - 750 W (adjustable)
Carbon Brush
12,000 - 18,000 RPM (adjustable)

Current
7 amps

Air Speed
75 - 100 m/s (adjustable)

Air Volume
87 - 116 m³/h (adjustable)

Operation
Touch free automatic

Safety
Overheat temperature protection
Safety timer prevents continuous running

IP Rating
IP23

Installation
Full fixing pack supplied
Cable entry to the left at the base of the unit

Electrical Connection
Installation must comply with current IEE Regulations
The product should be connected to the fixed wiring of the property via a double pole fused spur with a minimum break capacity of 13 amps

Class I

Approvals
CE, UKCA

Standard Warranty
3 year parts or replacement warranty
