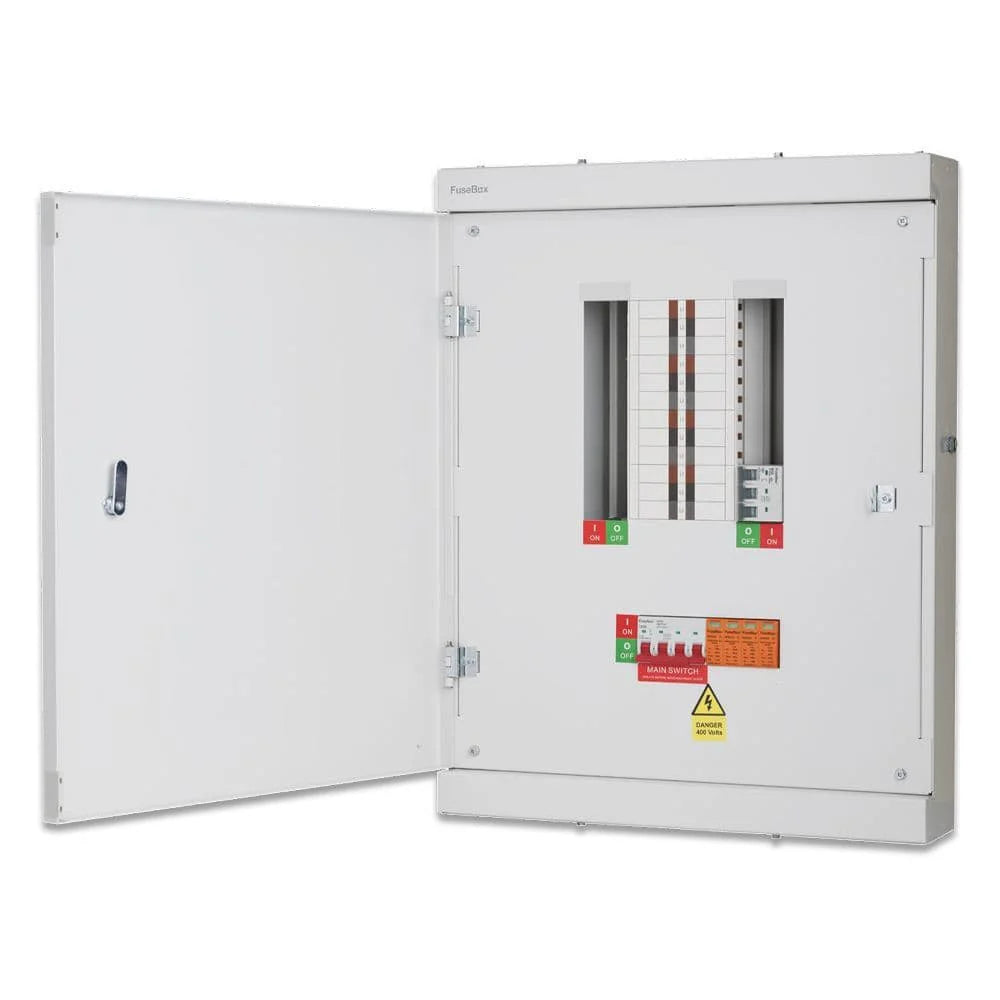

FuseBox - TPN07FBX - TPN 7 Way (125A Main Switch) SPD T2 Distribution Board
TPN07FBX
The FuseBox range of 3 phase circuit protection devices and enclosures offers a practical solution for commercial, industrial, and where required domestic installations.
All enclosures are supplied with a 125A 4 pole main switch as standard and T2 factory fitted Surge Protection Device (SPD).

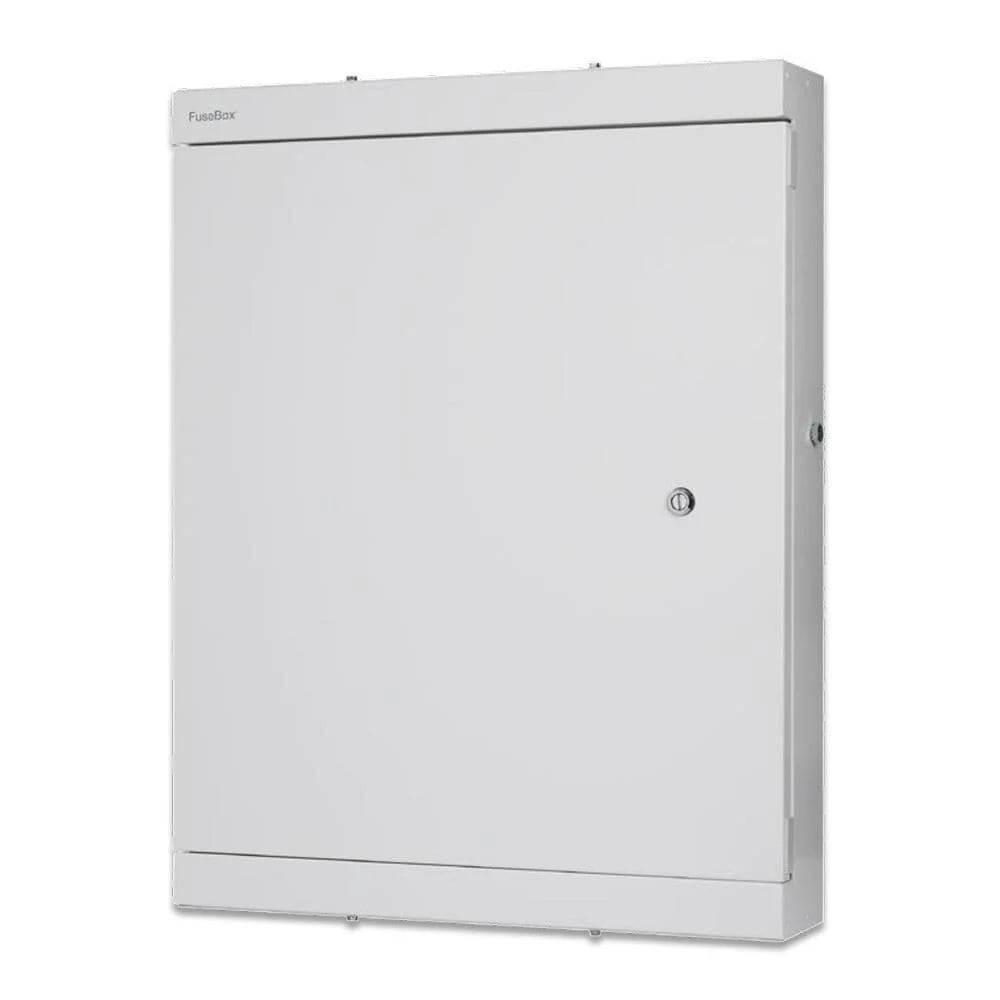

Robust 1.2mm galvanised steel enclosure to ensure a long life in the harshest of environments, finished in RAL 9001 epoxy powder coating.
TPN Boards will accept FuseBox 6kA devices without any modification or additional hardware.
- 125A Rated
- 4P 125A Main switch fitted
- T2 Surge Protection fitted
- Fully Shrouded Neutral terminals
- Fully Shrouded Incoming device
- 10kA devices

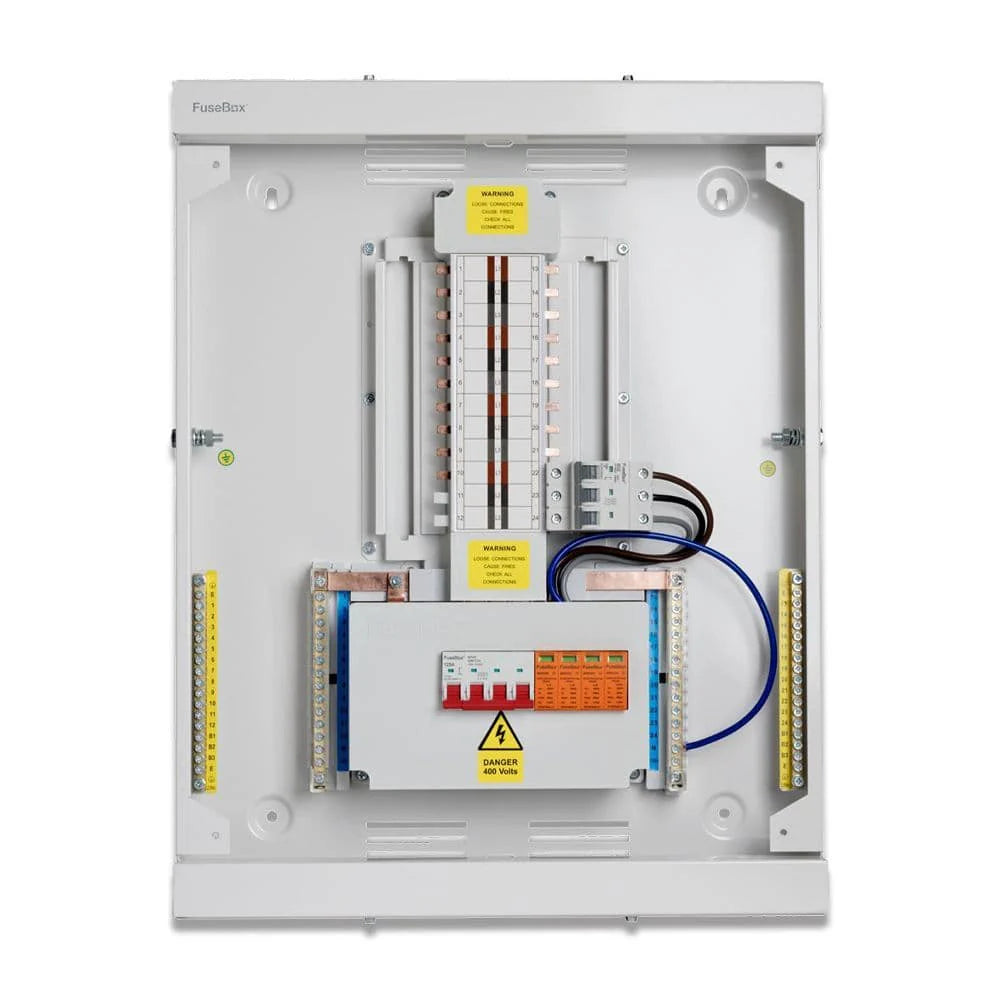

- Robust Pan assembly with device end stops
- Coin slot door lock
- Large easy to terminate terminals

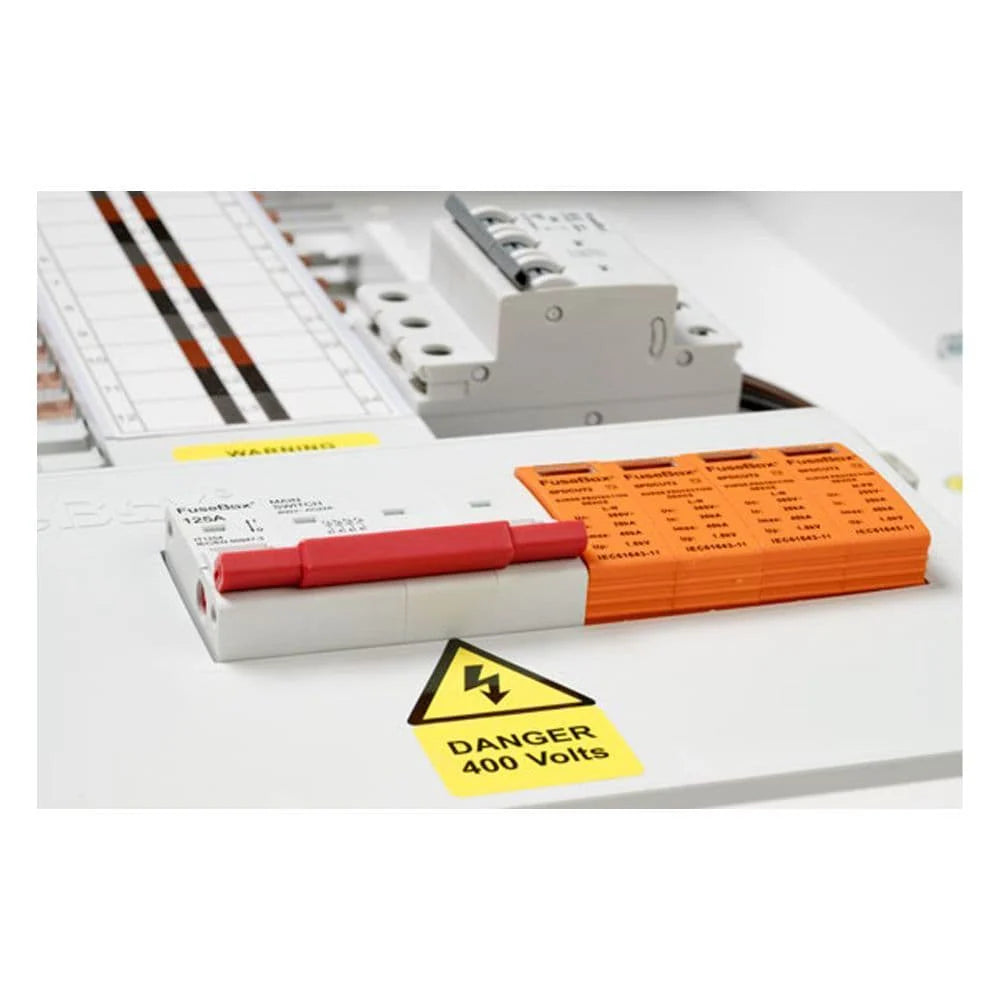

- SPD mounted by main switch
| Manufacturer | FuseBox |
| Range | TP&N |
| Dimensions | 642mm (H) x 500mm (W) x 113mm (D) |
| Finish | RAL 9001 |
| Material | 1.2mm Steel |
