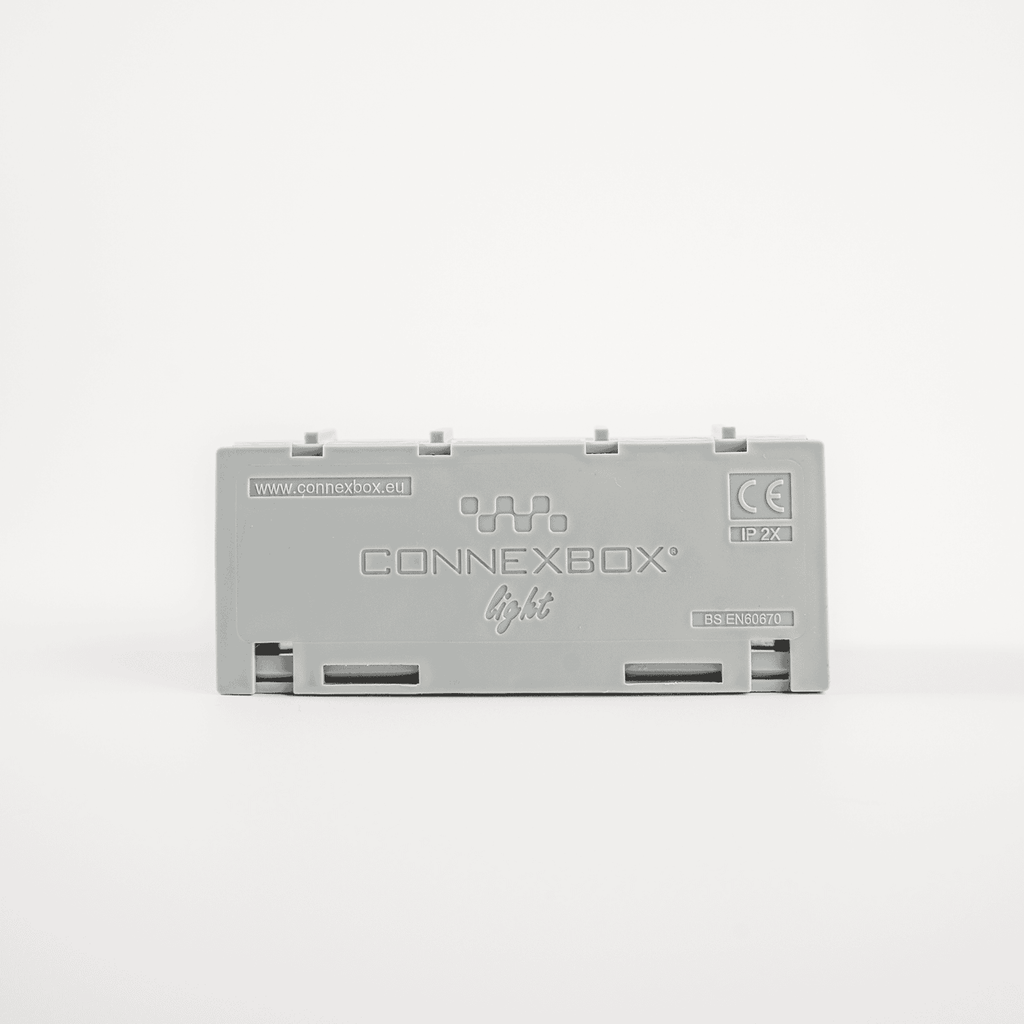

Connexbox® Light Enclosure - for WAGO® 221-2411 Inline Connectors and WAGO® 224, 260, and 294 Terminal Blocks CBP-3008
Reliable, versatile inline junction box for electricians. The Connexbox® Light enclosure is engineered for quick, safe, and compact cable connections. It works seamlessly with WAGO® 221-2411 inline connectors and WAGO® 224, 260, and 294 terminal blocks, and is also compatible with popular alternatives such as the Ideal 32A 2-way push-wire connectors.

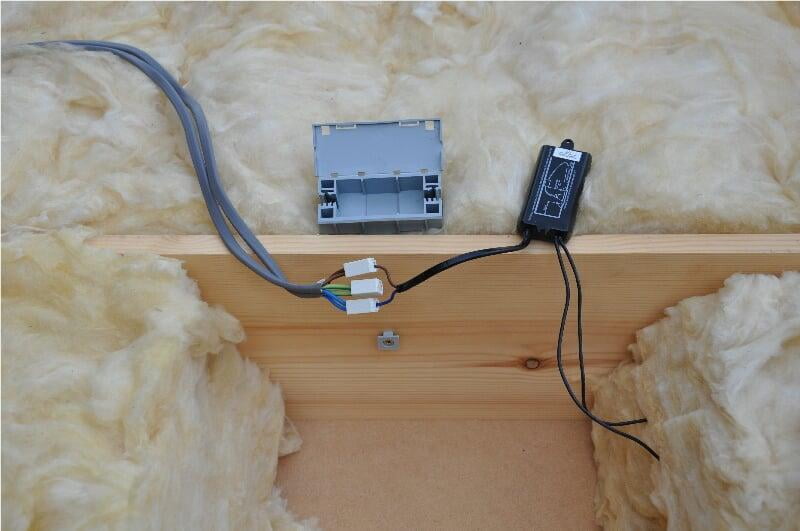

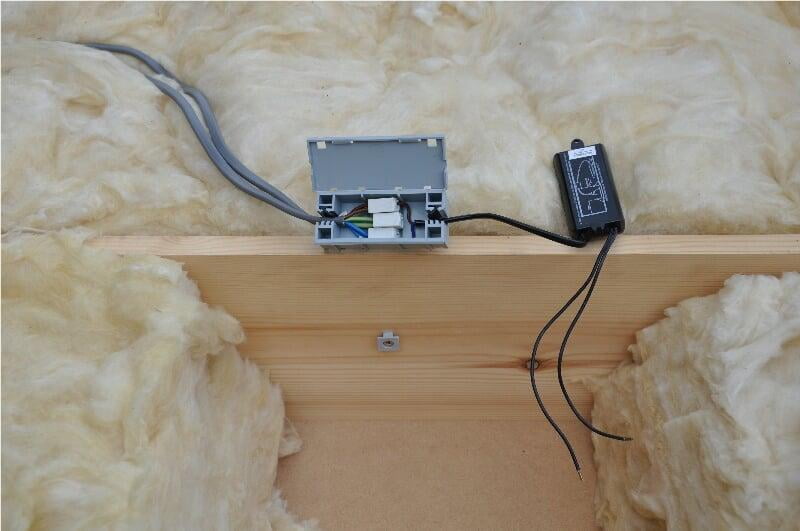

Perfect for joining and extending fixed wiring – including twin & earth, singles, or flex – this inline junction box is ideal for lighting circuits and small power applications where the enclosure remains accessible for inspection and maintenance.

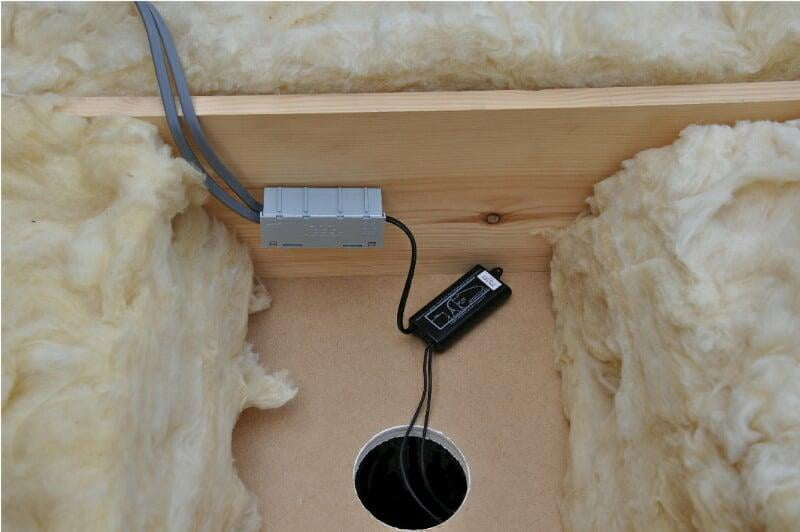

The Connexbox® Light can be fitted in ceilings, cupboards, voids, or similar accessible locations. Side-action mounting points and the convenient Connexbox® mounting button make surface installation simple, even after the connectors are in place.
This product is a replacement for WBL-001-G and 207-3303.
| Standards | BS EN60670-22 |
|---|---|
| Ingress Protection | IP2X |
| Dimensions: | 39mm x 29mm x 95mm |
| Cable Sizes: | 3 x 1.5mm² Twin & Earth or 3 x 1.0mm² Twin & Earth flat solid core to 1 x 0.5mm² - 1 x 1.5mm² flex |
| Connector Suitability: | Wago® 224-112 , 224-101 , 260 , 221-2411 and 290 Series Connectors |
| Current / Voltage Rating: | Up to 450v |
