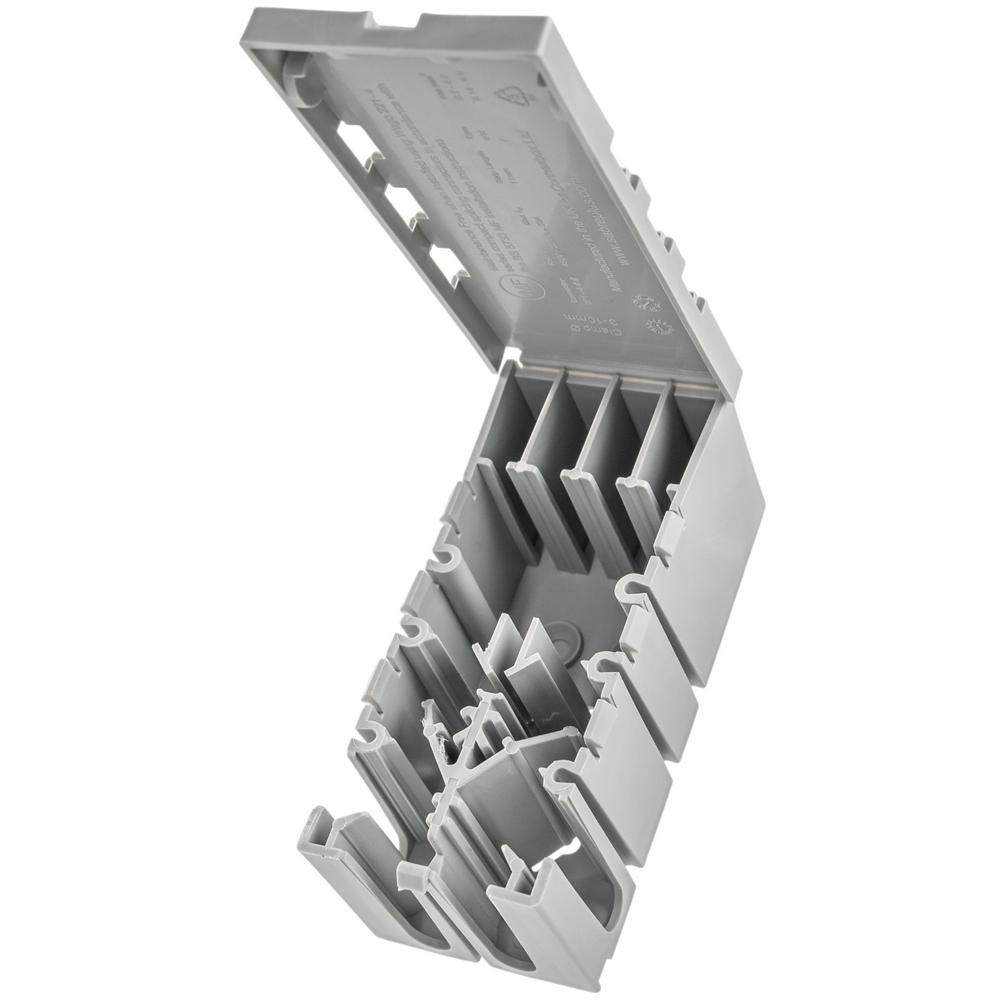

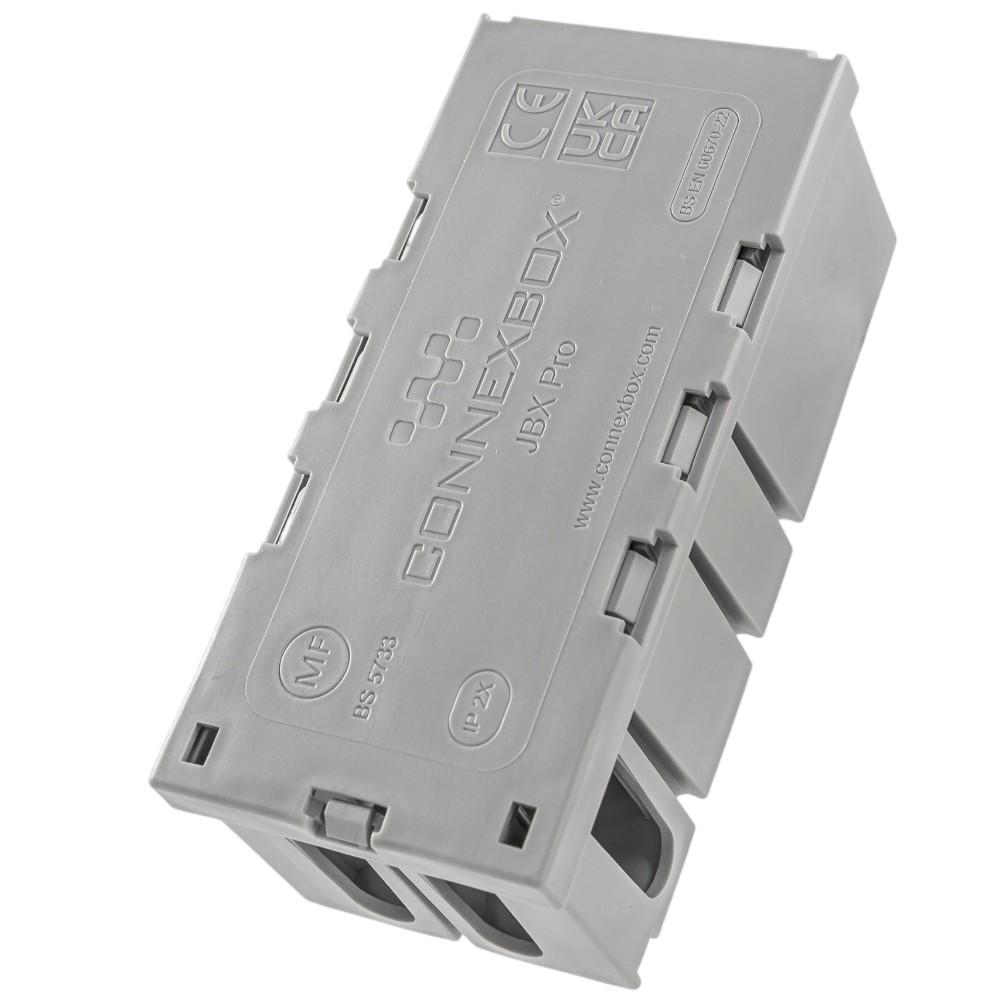

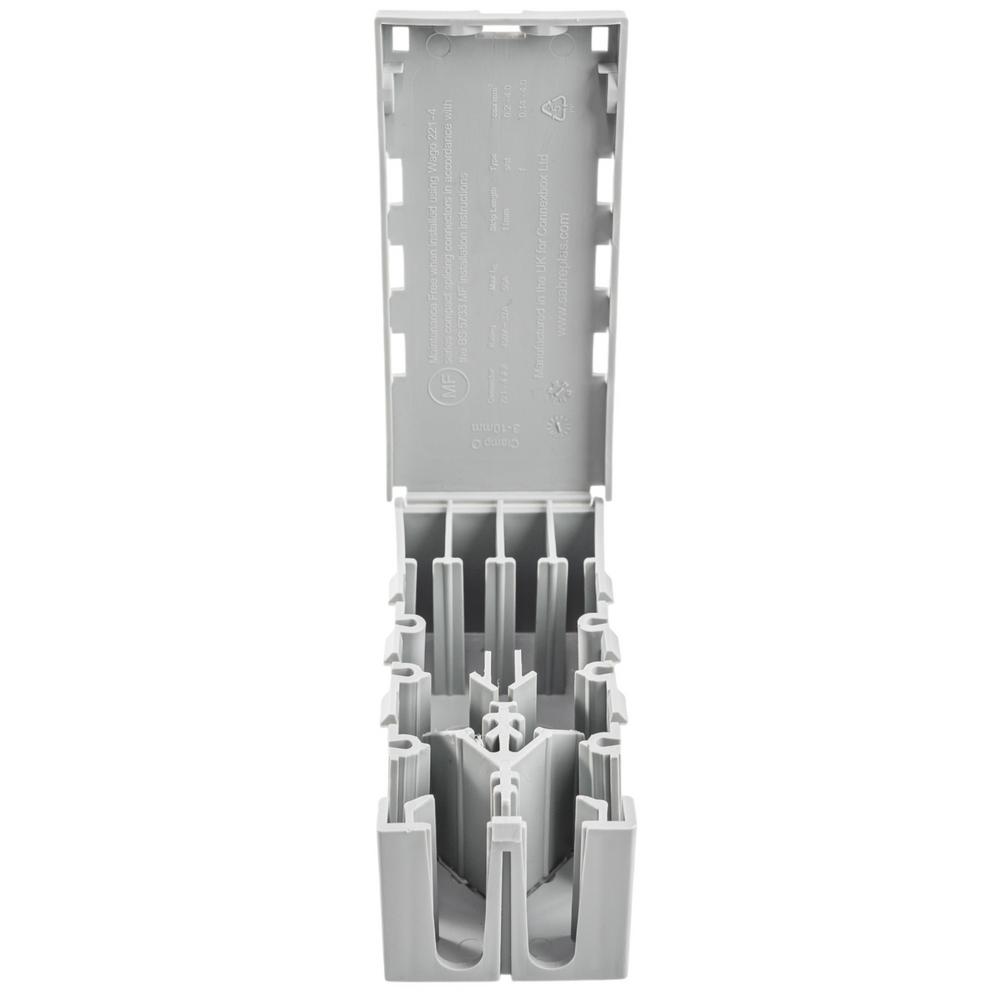

Connexbox® JBX Pro Enclosure - for WAGO® 221-4mm Series CBP-3016
CBP-3016
The JBX Pro builds on the trusted performance of the Connexbox® enclosure range with enhanced features for more complex or space-constrained installations. It’s ideal for electricians who regularly work across both power and lighting circuits, smart home systems, or need extra capacity and flexibility on the job.

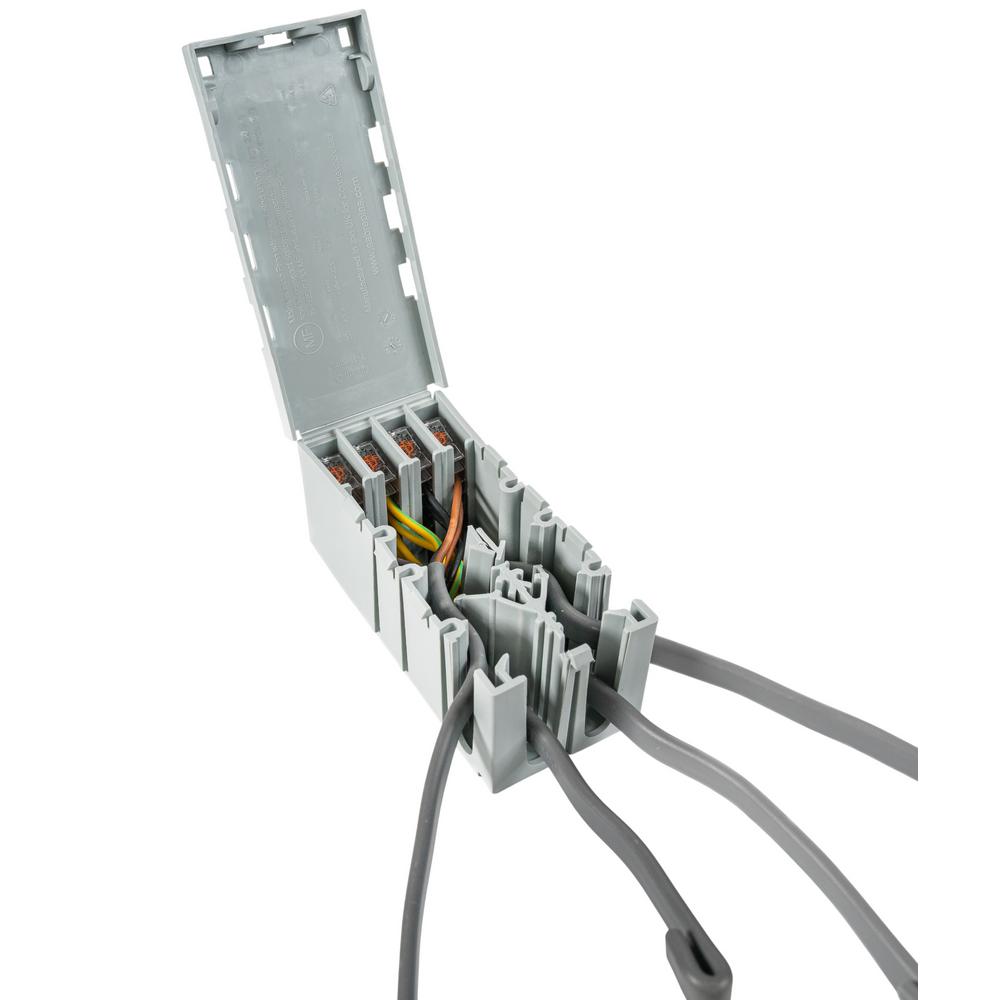

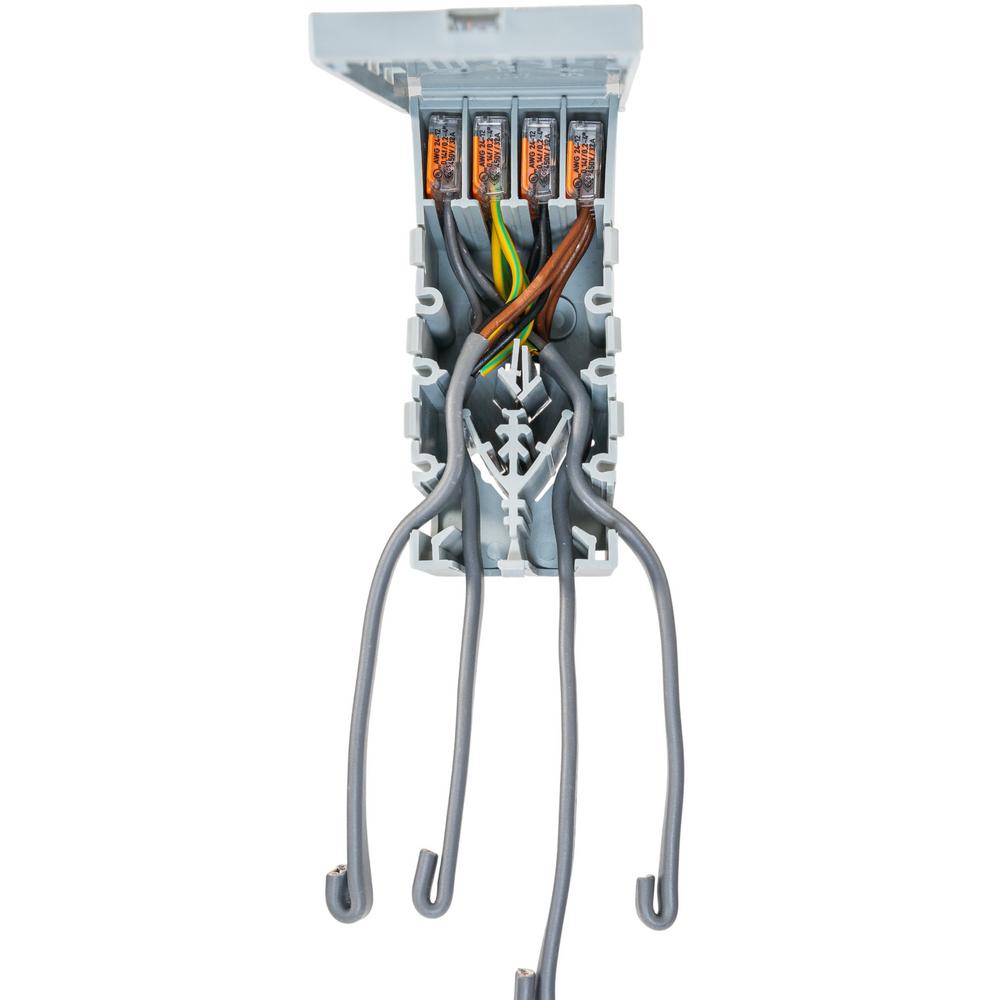

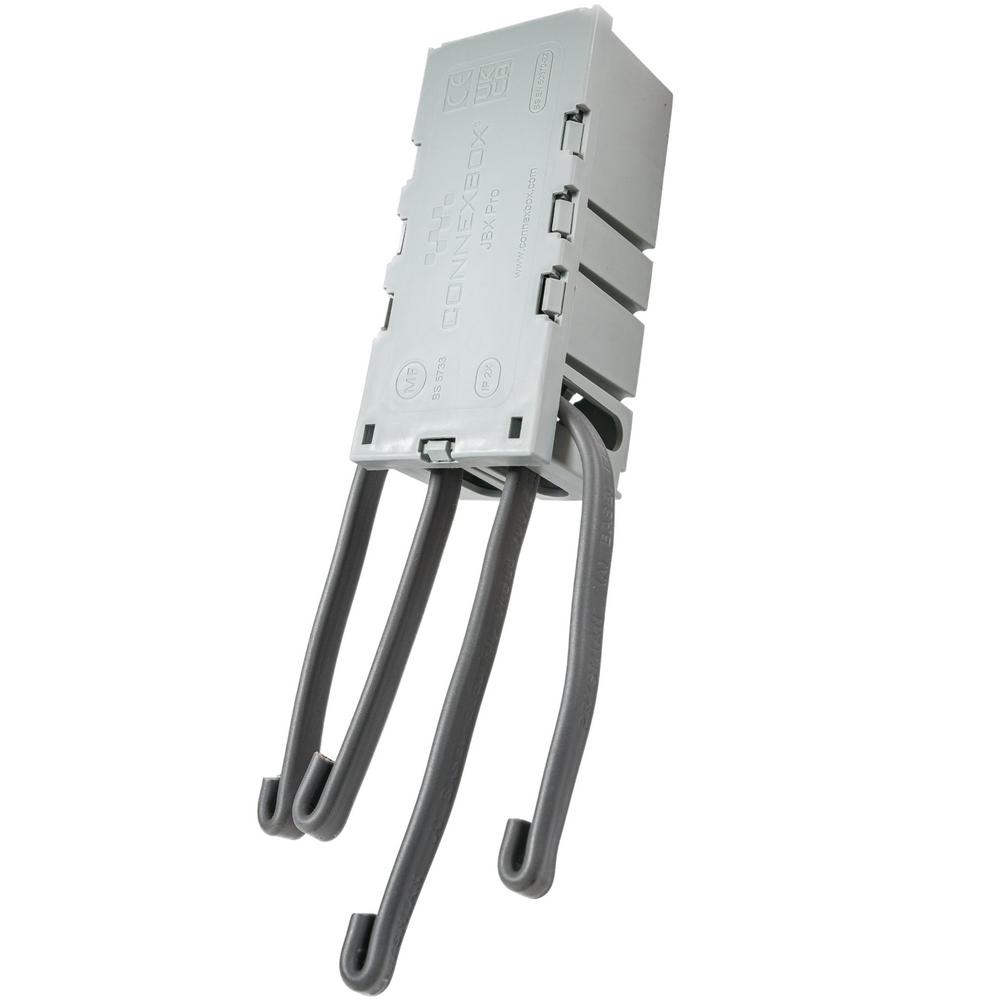

With an improved cable clamping system, space for more connectors, and added entry points, the JBX Pro is built for those moments when your project needs extra capacity and flexibility.
Connexbox® JBX Pro. More capacity. More flexibility. Same confidence.
| Standards | BS 5733 (Maintenance Free) |
|---|---|
| Ingress Protection | IP2X |
| Dimensions: | 51mm (W) x 42mm(H) x 113mm(L) |
| Cable Sizes: | 3 - 10 mm diameter |
| Max Individual Conductor Connections: | 24 when using 8 x 221-413 connectors |
| Conductor Sizes: | 0.14mm² to 4.0mm² |
| Ratings per IEC/EN: | 450v / 32A |
