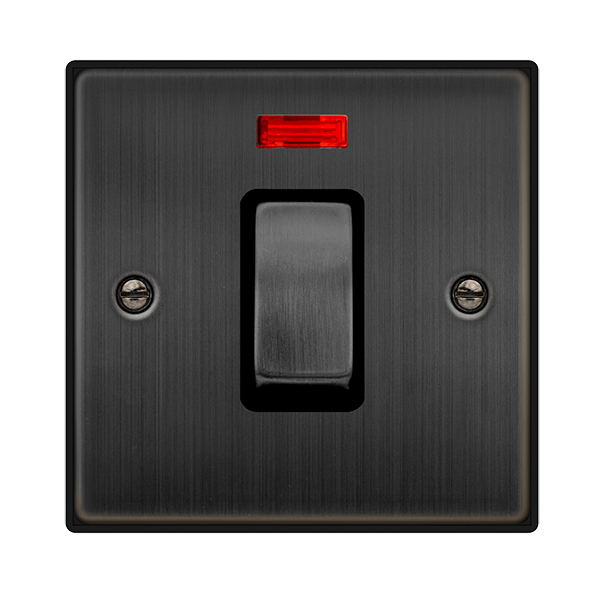

Click Deco - Matt Bronze - 45A 1 Gang DP Plate Switch With Neon

Click Deco Matt Bronze Range. A comprehensive range of decorative metal wiring accessories. The Deco Brand is synonymous with high specification, high quality, long life and unprecedented value for money. In addition the Deco range features the same modular switch design which is compatible with Mini-Grid modules however this is for switches only. With the ever increasing demand for power supplies in all areas of the home comes the problem of selecting and fitting outlets which blend harmoniously with the décor of the room in which they are fitted. The Click Deco range has it covered with 10 different finishes to choose from.

• Plate Dimensions (mm) 88 (W) x 88 (H) x 8 (D)
• Dimensions With Gasket (mm) 91 (W) x 91 (H) x 9 (D)
• Plate Fixing Centres - Horizontal (mm) 60.3
• Style Victorian
• Finish Matt Bronze
• Insert Colour Black
• Gasket Colour Black
• Materials Front Plate: Stainless Steel Insert & Rear Housing: Urea
• Switch Cover: Stainless Steel Neon Lens: Polycarbonate
• Terminals: Brass Terminal Screws: Steel & Yellow Passivated
• Contacts: Silver “on-lay” Copper / Brass Internal Busbars: Formed Pressed Brass
• Earth Strap: Mild Steel Gasket: Nylon
• Anti Microbial Certified No
• Rated Voltage (V~) (Ue) 250 Frequency (Hz) 50
• Resistive Load Rating (A) 45
• Termination Type Screw
• Terminal Size (mm) Ø6 Terminal Torque Value (Nm) 2.5
• Terminal Capacity - Solid (mm²) 1 x 16
• Double Pole Switch Yes
• Twin Earth Terminals Yes
• Neon Indicator Yes Indicator Colour Red
• Product Marking On & Off
• Minimum Back Box Depth (mm) 35
• Ingress Protection IP20
• Operational Temperature (°C) -5 to +40
• Warranty (Years) 10
• Standards BS EN 60669-1
