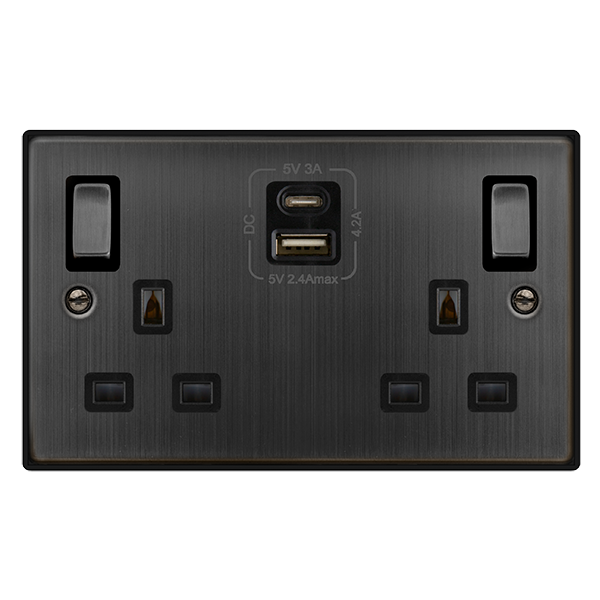

Click Deco - Matt Bronze - 13A 2 Gang Switched Socket Outlet With Type A & C USB (4.2A) Outlets

Click Deco Matt Bronze Range. A comprehensive range of decorative metal wiring accessories. The Deco Brand is synonymous with high specification, high quality, long life and unprecedented value for money. In addition the Deco range features the same modular switch design which is compatible with Mini-Grid modules however this is for switches only. With the ever increasing demand for power supplies in all areas of the home comes the problem of selecting and fitting outlets which blend harmoniously with the décor of the room in which they are fitted. The Click Deco range has it covered with 10 different finishes to choose from.

• Plate Dimensions (mm) 146 (W) x 88 (H) x 8 (D)
• Dimensions With Gasket (mm) 149 (W) x 91 (H) x 9 (D)
• Plate Fixing Centres - Horizontal (mm) 120.6
• Style Victorian
• Finish Matt Bronze
• Insert Colour Black
• Gasket Colour Black
• Materials Front Plate: Stainless Steel Insert: Urea
• Housing: Nylon Switch Cover: Stainless Steel
• Terminals: Brass Terminal Screws: Steel & Yellow Passivated
• Contacts: Silver “on-lay” Copper / Brass Internal Busbars: Formed Pressed Brass
• PCB: Mixed Components Earth Strap: Mild Steel
• Anti Microbial Certified No
• Rated Voltage (V~) (Ue) 250 Frequency (Hz) 50
• Resistive Load Rating (A) 13
• USB Output Type USB Type “A” & Type “C”
• USB Number Of Outputs 2 USB Charging Total Load (A) 4.2
• USB Charging Voltage (V DC) 5 USB Standby Current (mA) 2
• Termination Type Screw
• Terminal Size (mm) Ø5 Terminal Torque Value (Nm) 1.2
• Terminal Capacity - Solid (mm²) 3 x 2.5 or 2 x 4
• Single Pole Switched Yes
• 3 Pin Safety Shuttered Yes
• Twin Earth Terminals Yes
• Product Marking DC, 5V 3A, 5V 2.4A max, 4.2A
• Minimum Back Box Depth (mm) 25
• Ingress Protection IP20
• Operational Temperature (°C) -5 to +40
• Warranty (Years) 20 Warranty - Electronics (Years) 1
• Standards BS 1363-2: 2016 +A1: 2018/BS EN IEC 62368-1/BS EN 62680-1-1
