Wiska - COMBI 108 LG (LIGHT GREY) Junction Box - 10060522
10060522

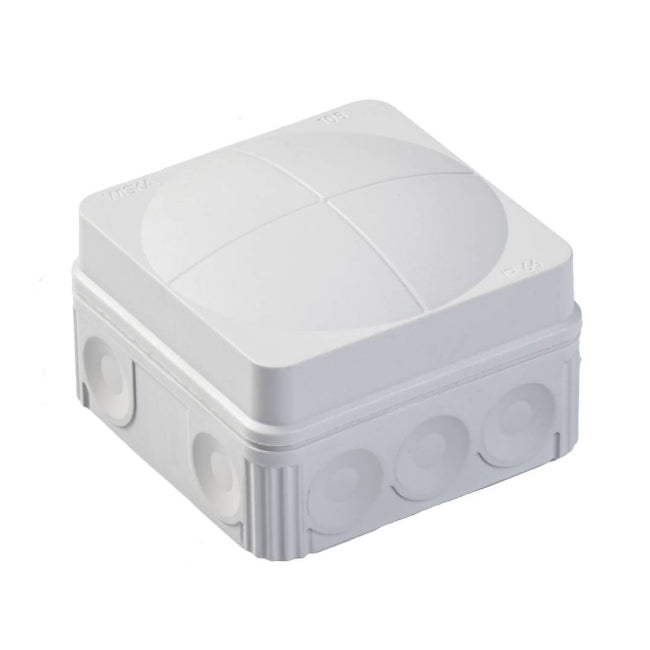

The Combi 108 empty junction box enclosure has been designed for extreme conditions suitable for use both internally and externally. The IP 66 rating offers great protection against dust and moisture and the membrane entries allows easy installation without the need of locknuts.
For use in all applications; domestic, commercial and industrial.
Impact-resistant, weather & UV-resistant, flame-retardant, halogen-free and shatter-proof.
Equipment: 10 elastic self-sealing puncture-membranes for cable entry on the side and 2 in the bottom.
Fixing: By two internal openings outside of the sealing area.
| Material | Polypropylene |
| Material sealing gasket | TPE |
| Temp. range min | -30 °C |
| Temp. range max | 100 °C |
| Temperatures during install. | -5 °C - 60 °C |
| Protection class | IP66 |
| Glow wire test | 750 °C |
| Voltage | 400 V |
| Rated cross section | 2,5 mm² |
| Fixing | 2 internal openings |
| Ø cable diameter min | 3 mm |
| Ø cable diameter max | 14 mm |

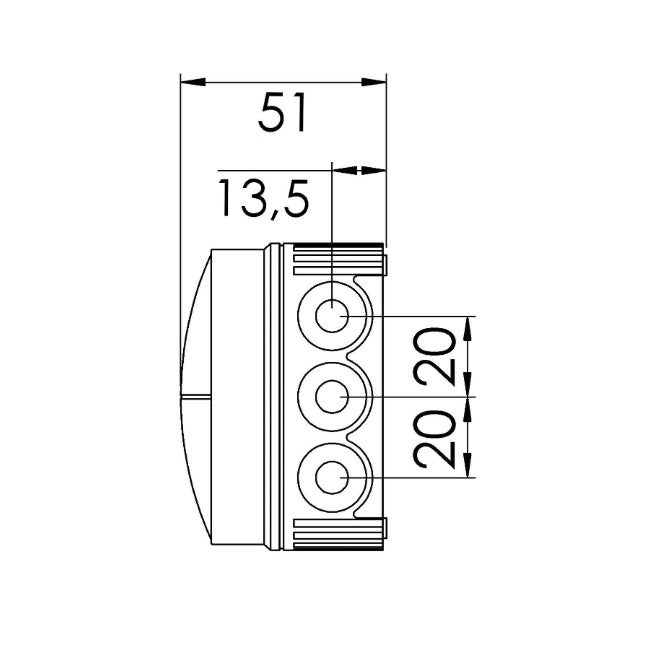

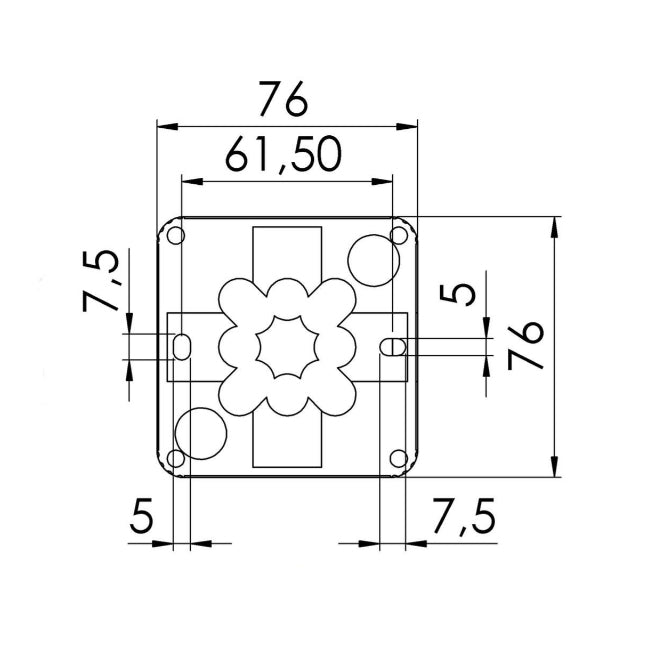

| External dimensions LxWxH | 76 x 76 x 51mm |
