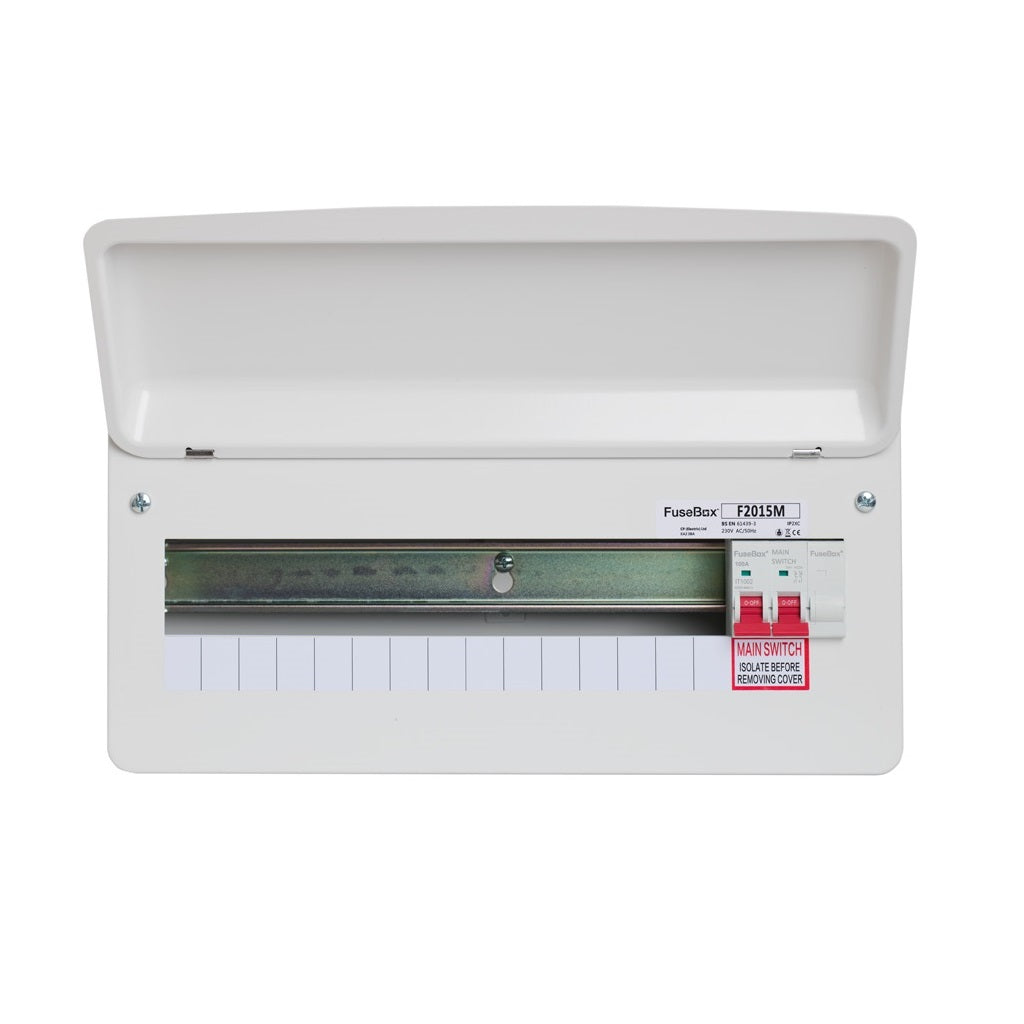

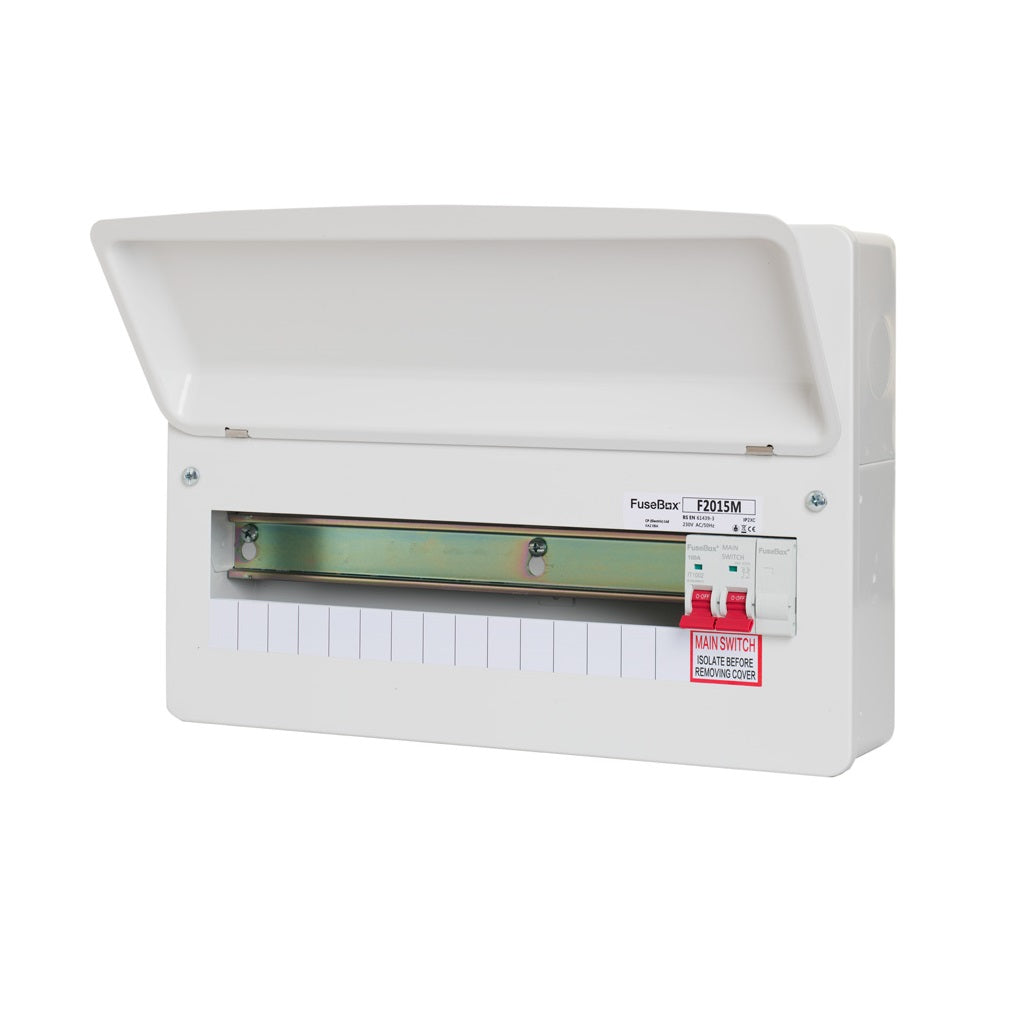

FuseBox - 15 Way RCBO 100A Main Switch Consumer Unit F2015M
F2015M
Features:
- The FuseBox circuit protection range of metal consumer units and protection devices, offers flexible versatile solutions for electrical installations.
- 15 Usable Ways
- T2 SPD and tail clamp can be retro-fitted.
- Earth and neutral terminal bars at the top
- Removable and raised DIN rail
- Round knock-outs on all faces
- RAL 9001 powder-coated finish
- Circuit identification labels
| Description | 100A 15 Way Main Switch Consumer Unit |
| Dimensions (mm) | H: 259 W: 378 D: 113 |
| Voltage | 230v / 50Hz |
| Standard | BS EN 61439-3 |
| Knockouts | Selection of conduit knockouts on all sides 20mm - 40mm |
| Material | 1mm Electro galvanised steel |
| Part Code | F2015M |
